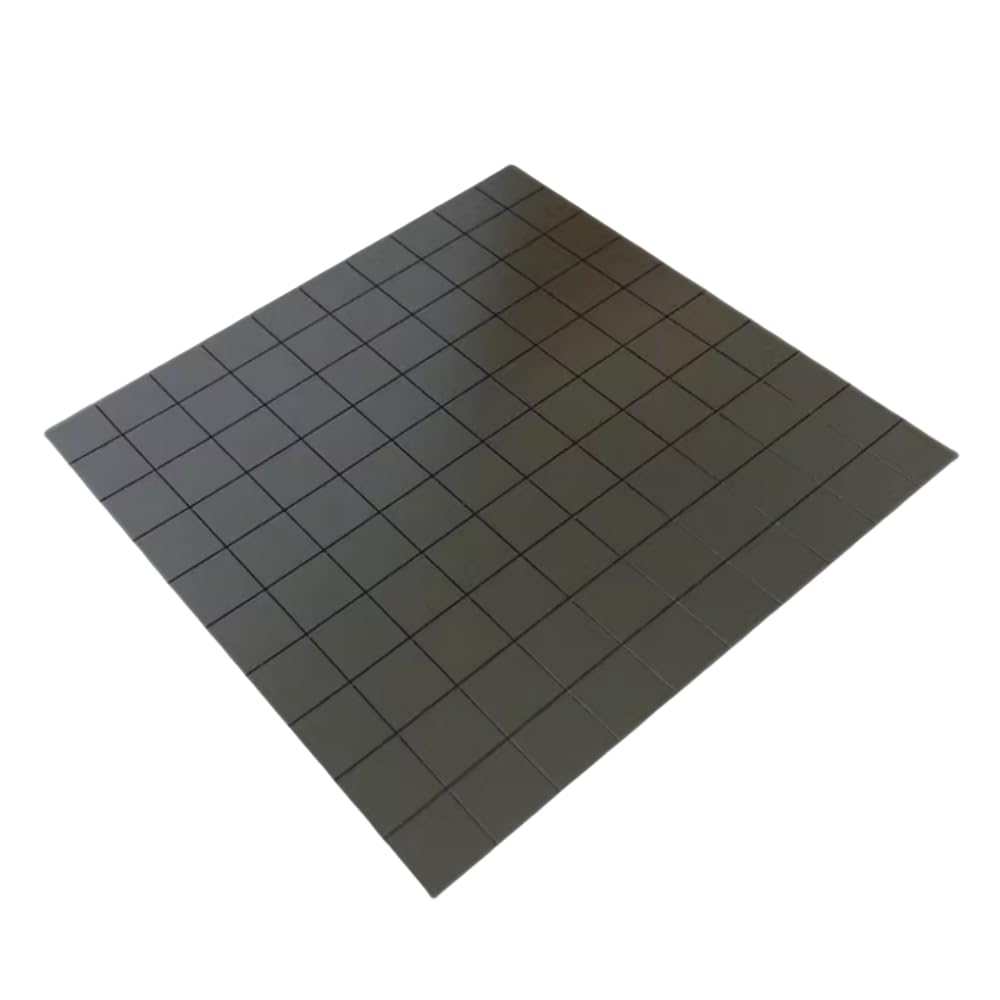

High-Purity Single Crystal Silicon Wafer - Single-Sided Polished for SEM & Optical Biological Research(8mmx8mm)
4.0 (133 items)
Limited Time Sale$34.53 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 220360934 | Release Date | 2026/05/03 | List Price | $23.02 | Model Number | 220360934 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Doping type: P-type (doped with boron)Cleavage planes: Resistivity: 0.001 - 50 (Ω.CM)Usage Introduction: It is used as a sample housing for synchronous irradiation in processes, as a substrate for PVD/CVD coating, for XRD/SEM analysis and testing of samples grown by magnetron sputtering, for atomic force, infrared spectroscopy, fluorescence spectroscopy and other analysis tests, for the base of molecular beam epitaxy growth, and for X-ray analysis of crystal semiconductors.If you have any requirements regarding the impurity type, resistivity, or crystal orientation, please us.
- High-purity single crystal silicon wafer, ideal for experimental research and optical applications with exceptional flatness and low roughness.
- Available in multiple sizes (2x2mm to 50x50mm) to meet diverse experimental needs, ensuring versatility for various applications.
- Perfect for use as a substrate for PVD/CVD coating, enabling thin film deposition and material analysis.
- Optimized for XRD/SEM analysis, providing reliable sample testing for magnetron sputtering and other advanced techniques.
- P-type doping with boron ensures excellent electrical properties, making it suitable for a wide range of scientific and industrial applications.
| Item Weight | 1.76 ounces |
|---|---|
| Manufacturer | JJURQBSXC |
| Item model number | JJURQBSXC |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
